PRODUCT DETAILS

Introduction:


The small type mobile wood branch crusher is used to cutting the waste wood or make wood chips, wood pieces which specially designed for small round logs, square blocks, tree branches, wood staff and so on, it also good for crushing the big size corn stalk, soybean stalk, reed, elephant grass…


This small wood chipper shredder machine power supply by the high quality gasoline engine or by high efficiency diesel engine or by electric motors.  The home using wood chipper machine with 1 pair of wheels, flexible and convenient to move to anywhere.



Based on customer’s demand there are many different methods of start, such as manual start, electric-start or remote start...


Mainly Parameter:

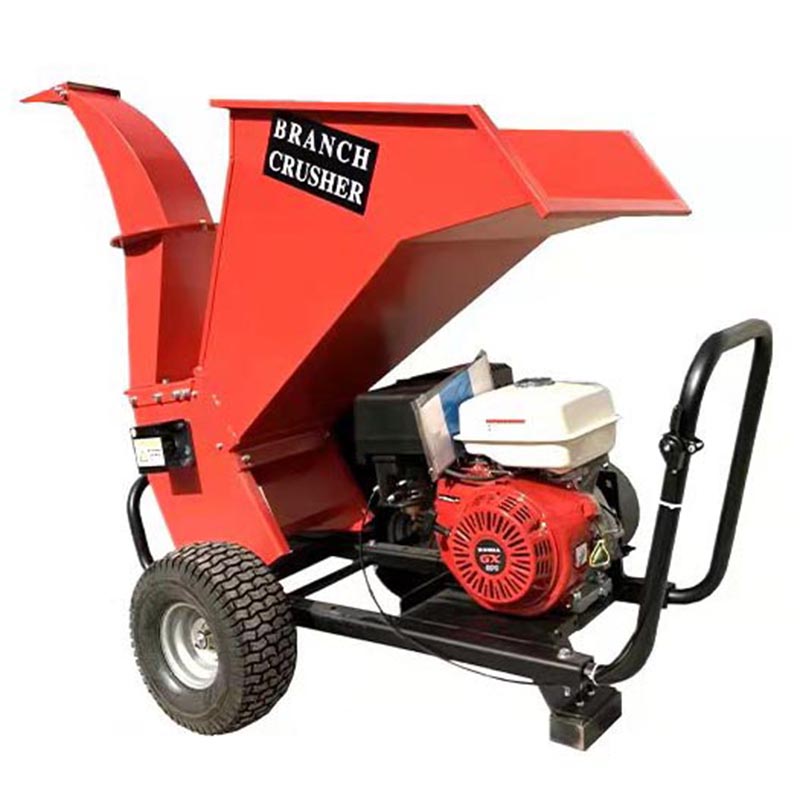

ModelPGE1500PGS1500PDE1500PER1500
Driving type:Gasoline engineGasoline engineDiesel engineElectric Motor
Power:15HP15HP16 HP11kw
Start method:Manual startElectric startElectric startRemote start
Max wood branch:12 CM12 CM12 CM12 cm
Fuel tank volume:5.5 L5.5 L5.5 L/
Number of flying blades:3pcs3pcs3pcs3pcs
Number of fixed blades:1 pc1pc1 pc1 pc
Feeding hopper size:700 x 560 mm700 x 560 mm700 x 560 mm700 x 560 mm
Dimension of machine:1800 x 900 x 1400 mm1800 x 900 x 1400 mm1800 x 900 x 1400 mm1800 x 900 x 1400 mm
Weight of Machine:210KG210KG230KG210KG

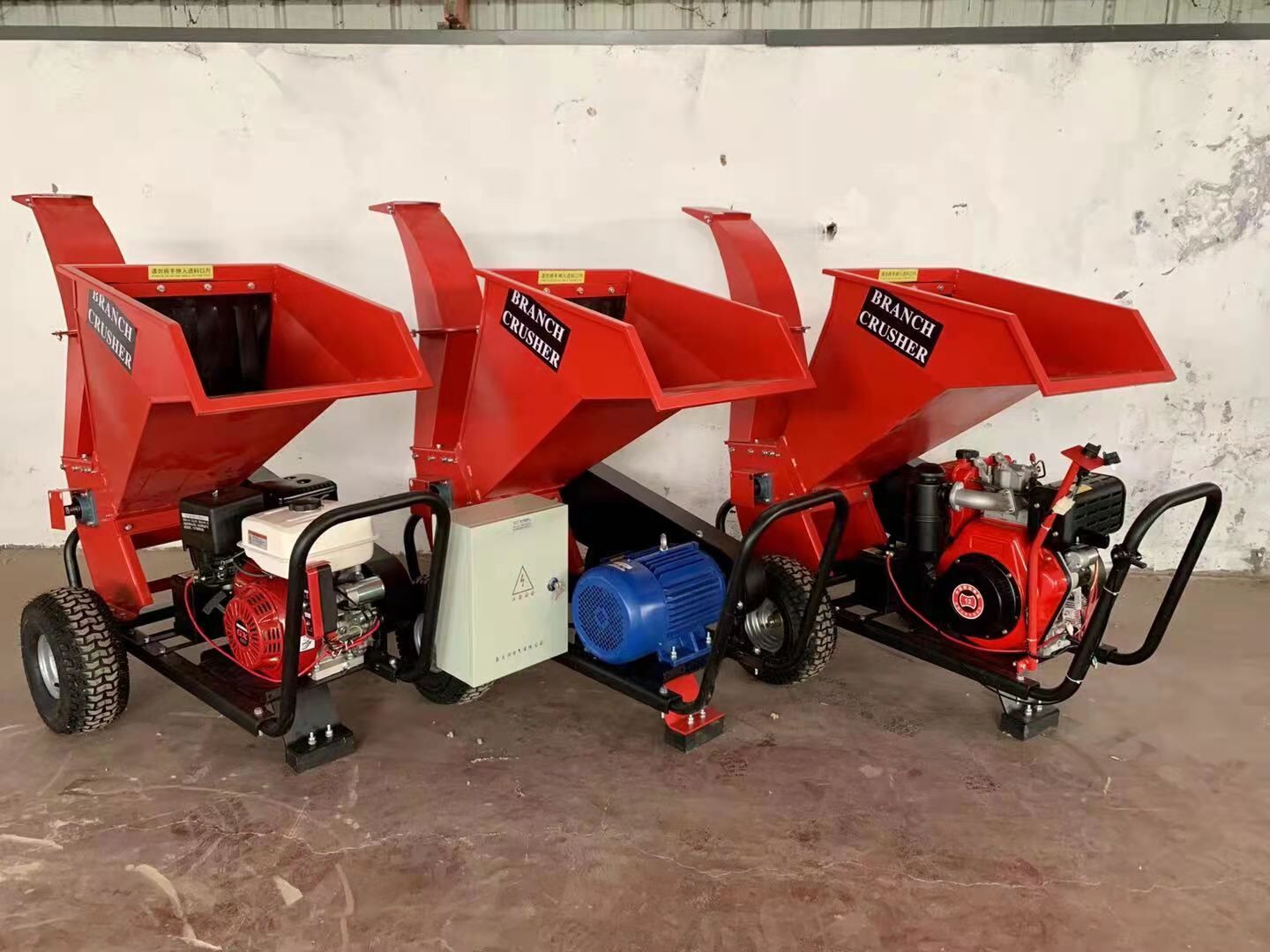

Photo of Machines:

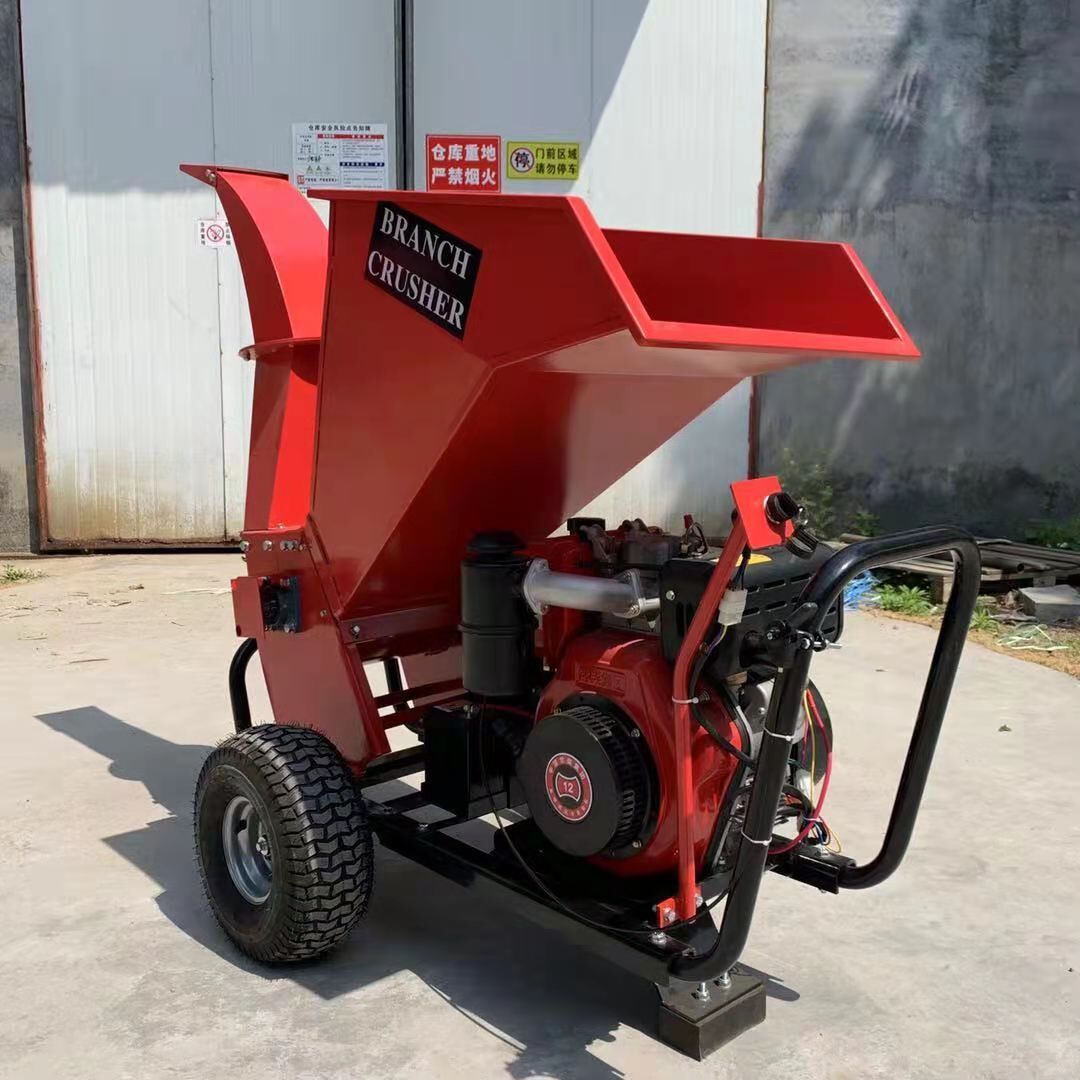

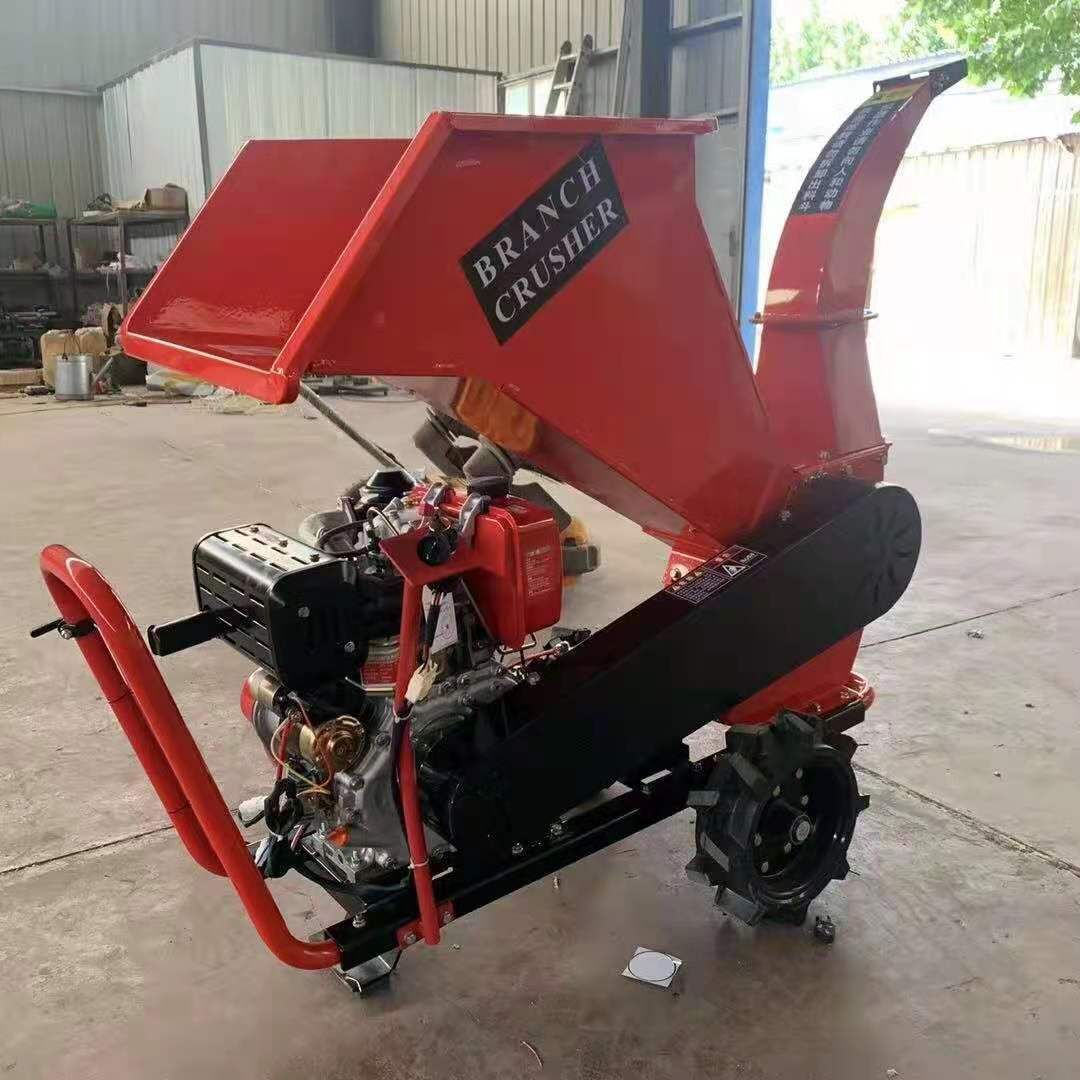

Small wood chippeer (6).jpg82334f83ebe87af781d326b489564bc.jpg

Small wood chippeer (17).jpg
