PRODUCT DETAILS

Introduction:


The SG type small hammer mill is the most ideal grinding equipment for all kinds of animal feed, wood chips, wood shavings, grass, straw, stalk, rice husk, palm fiber and so on. when crush plastic, PVC, rubber e.c.t,


It also can crush animal feed materials such as soybean, maize, cereal and fertilizer materials from animal manure, chemical e.c.t which is mainly used in wood factory, feed factory, organic fertilizer factory, and so on.



The SG small hammer mill mainly spare parts such as hammers and screener are made by our CNC systems, through high technical heat treatment, standing out from other suppliers is that we could ensure the parts high precision and good quality.



SG small hammer mill machine can work with air fan and cyclone, air lock, dust filter, after crushed, the powder will outlet from cyclone bottom, which is very environmental protection and easy to collect dust.



Mainly Parameters:


ModelPower(kw)Capacity (Ton / h)Hammer Qty(piece)Weight(T)Dimension(mm)
SG407.50.1-0.3120.271310×800×1070
SG5011/150.2-0.4160.451380×800×1010
SG65x27220.5-0.8240.951900×800×1100
SG65x5537-551-2481.52100×1000×1100
SG65x7555-752-3722.02100×1700×1500


Photo of Machines:

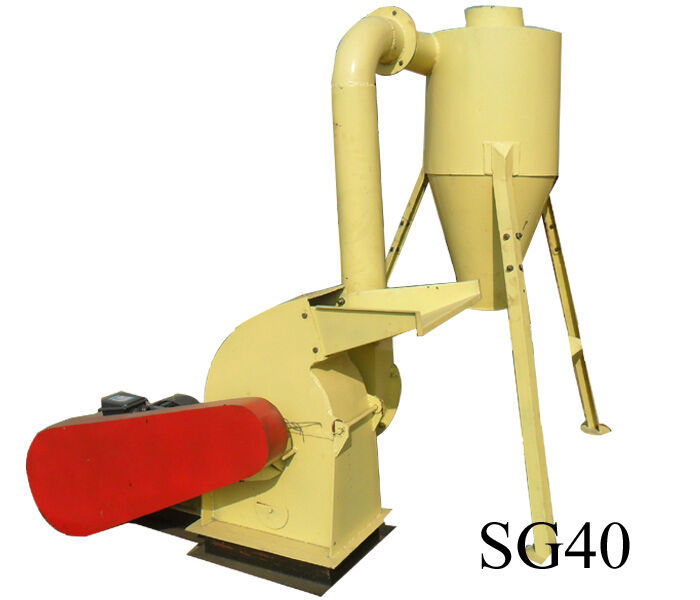

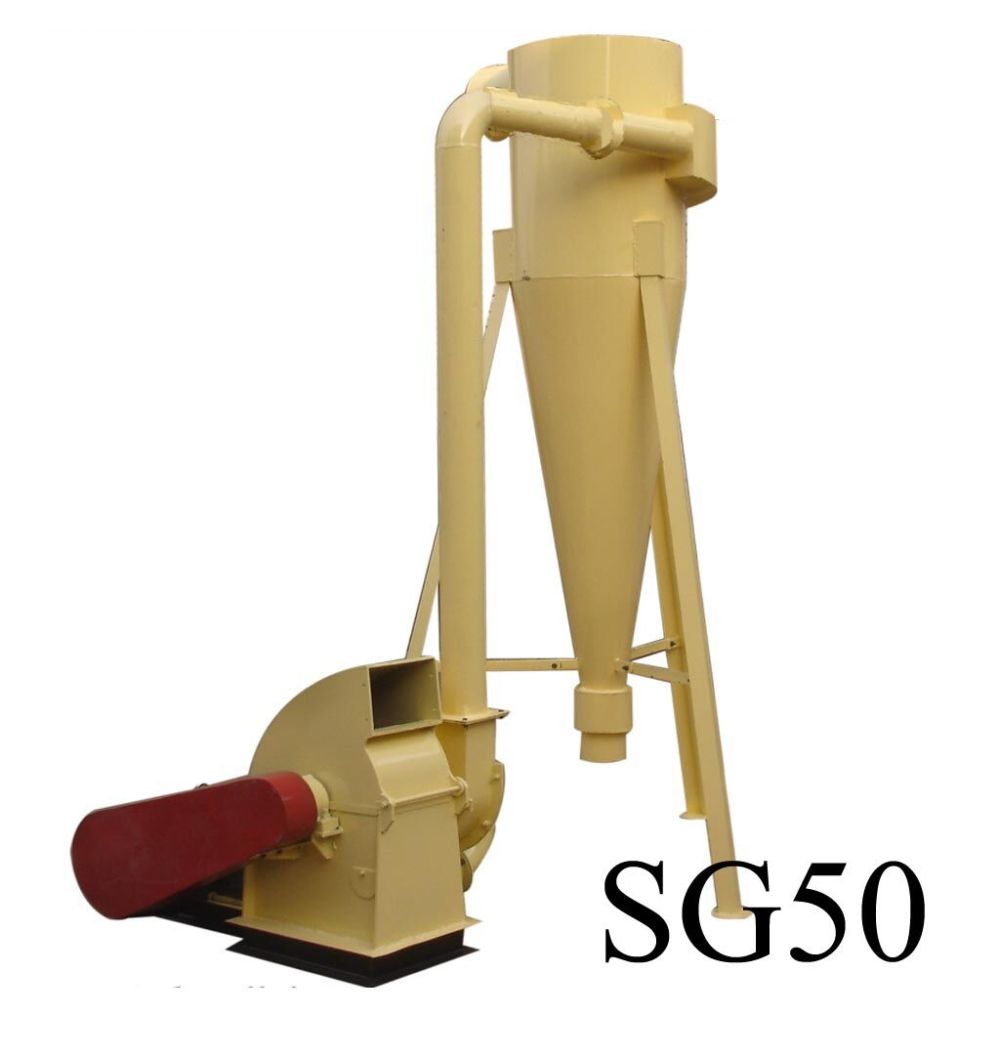

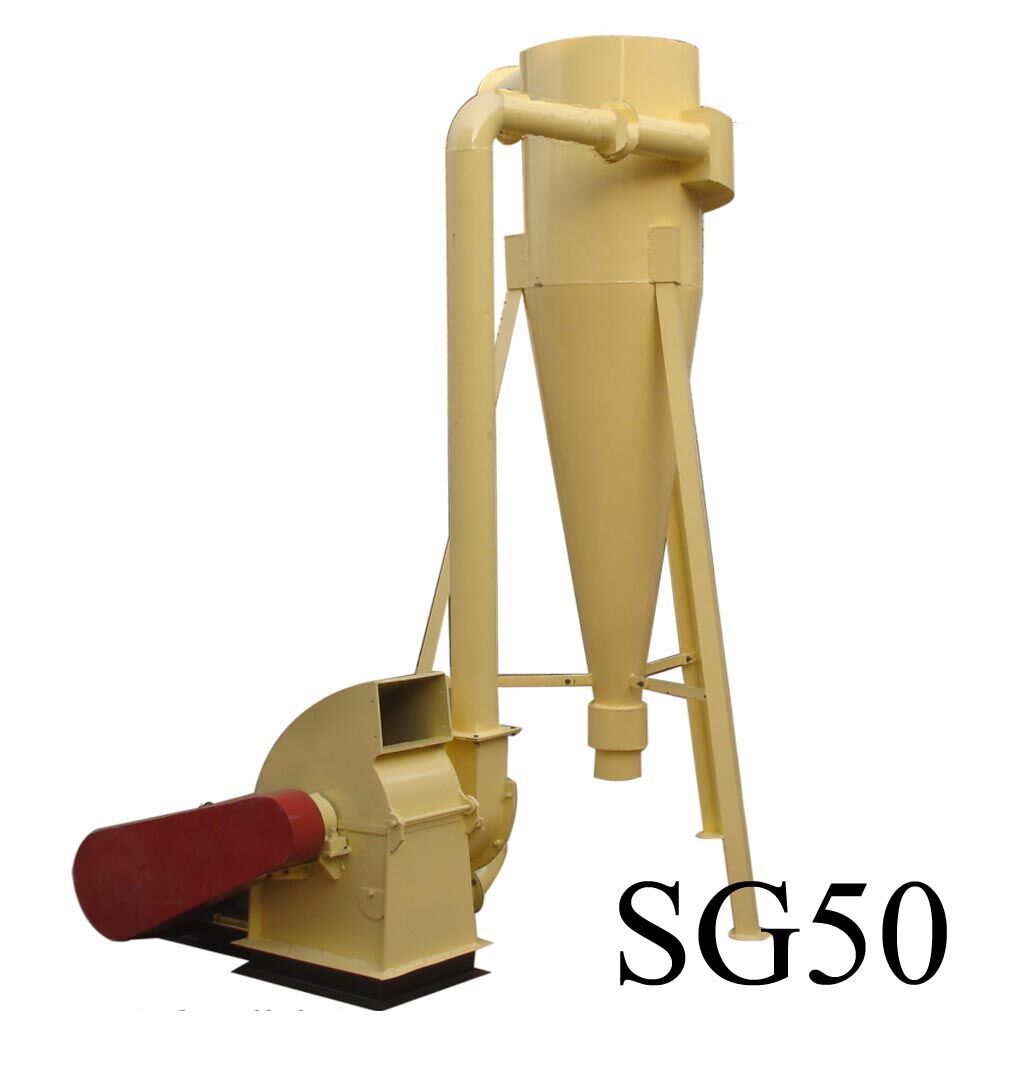

SG40 hammer mill 拷贝.jpgSG50 hammer.jpg
